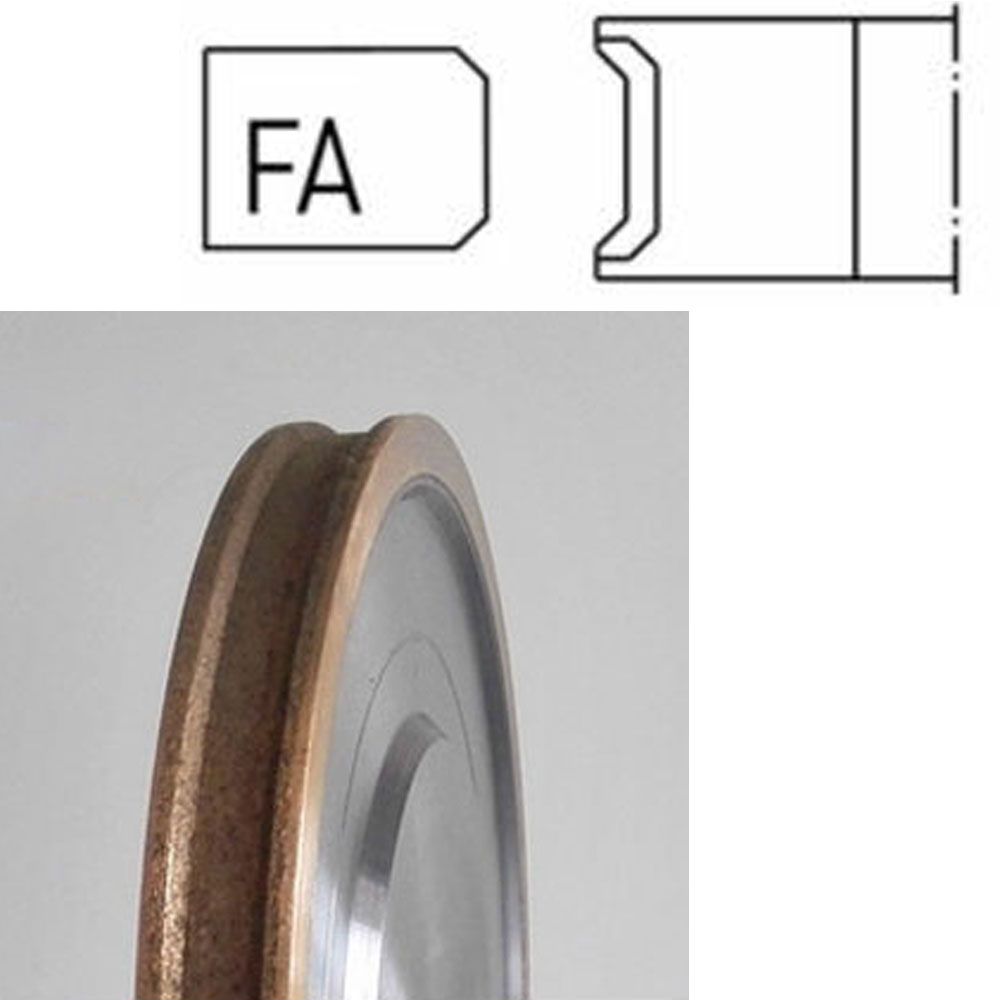

FA Type Straight Edge Diamond Grinding Wheel

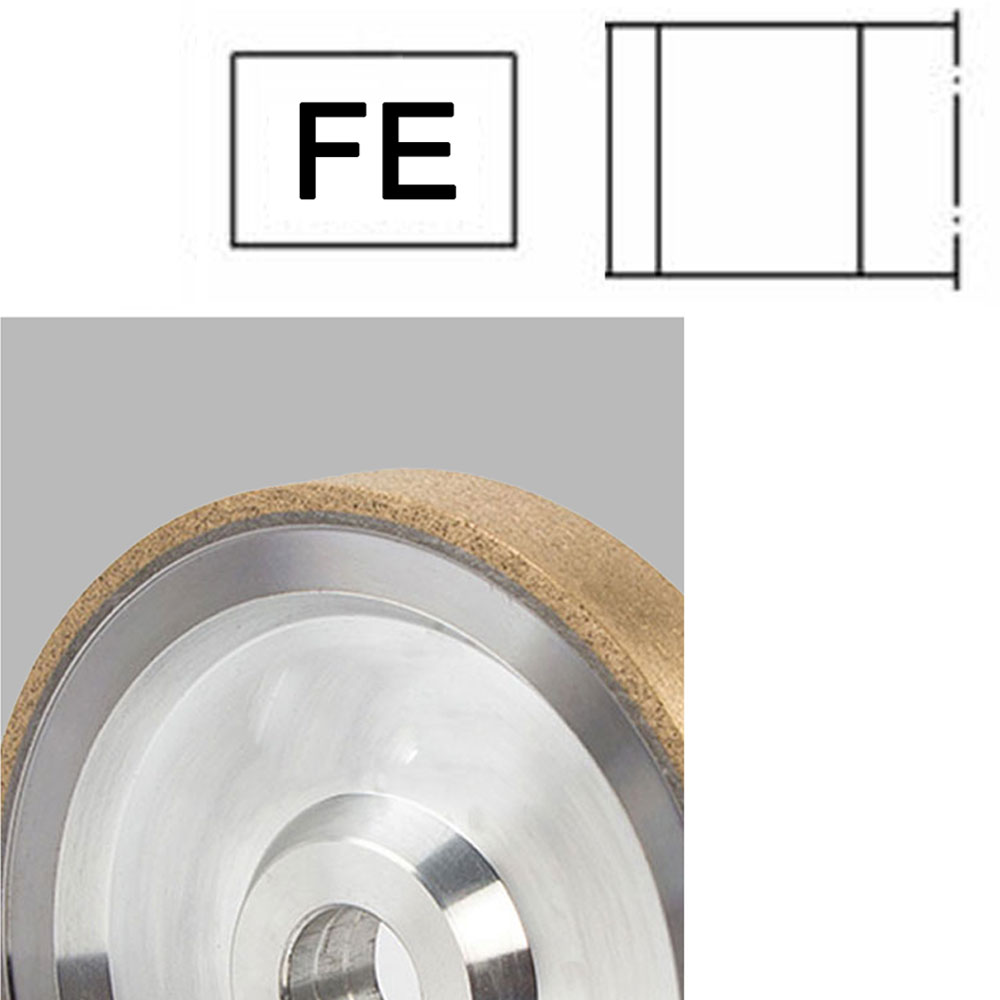

FE Type Flat Edge Diamond Grinding Wheel

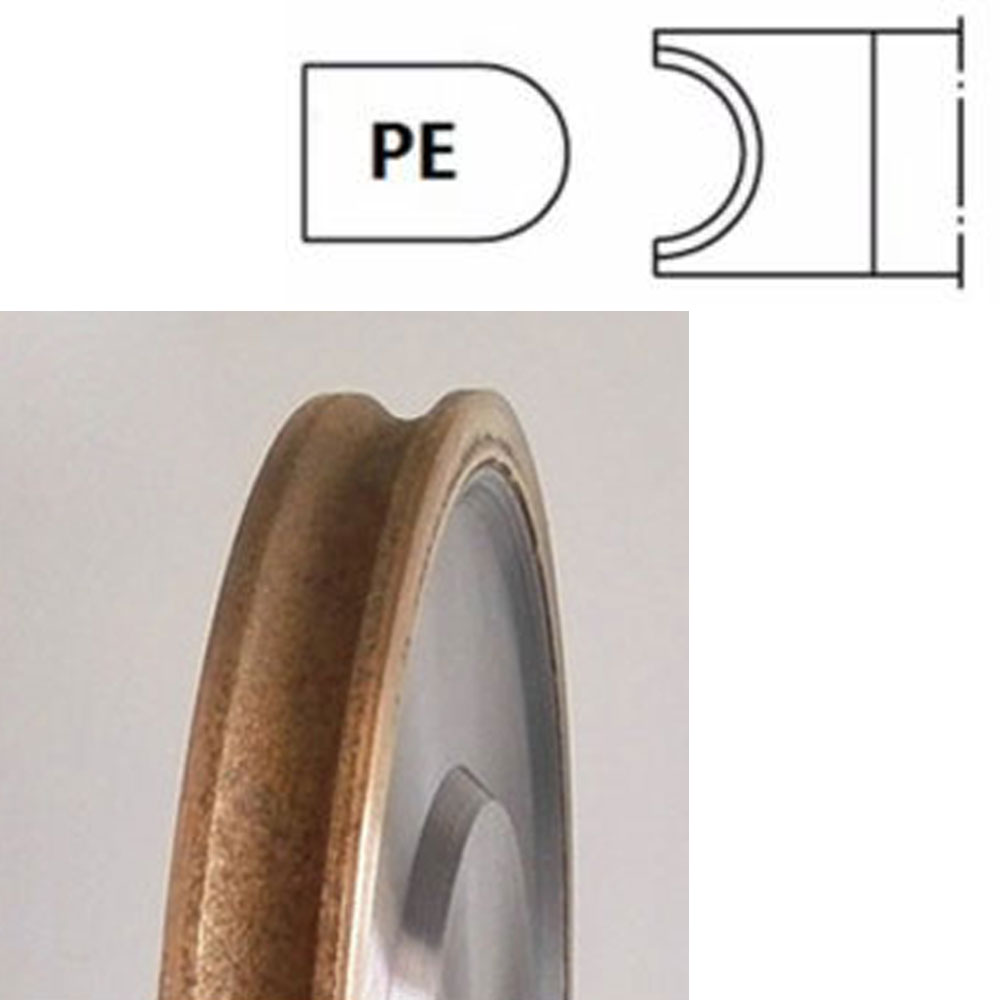

PE Type Pencil Edge Diamond Grinding Wheel

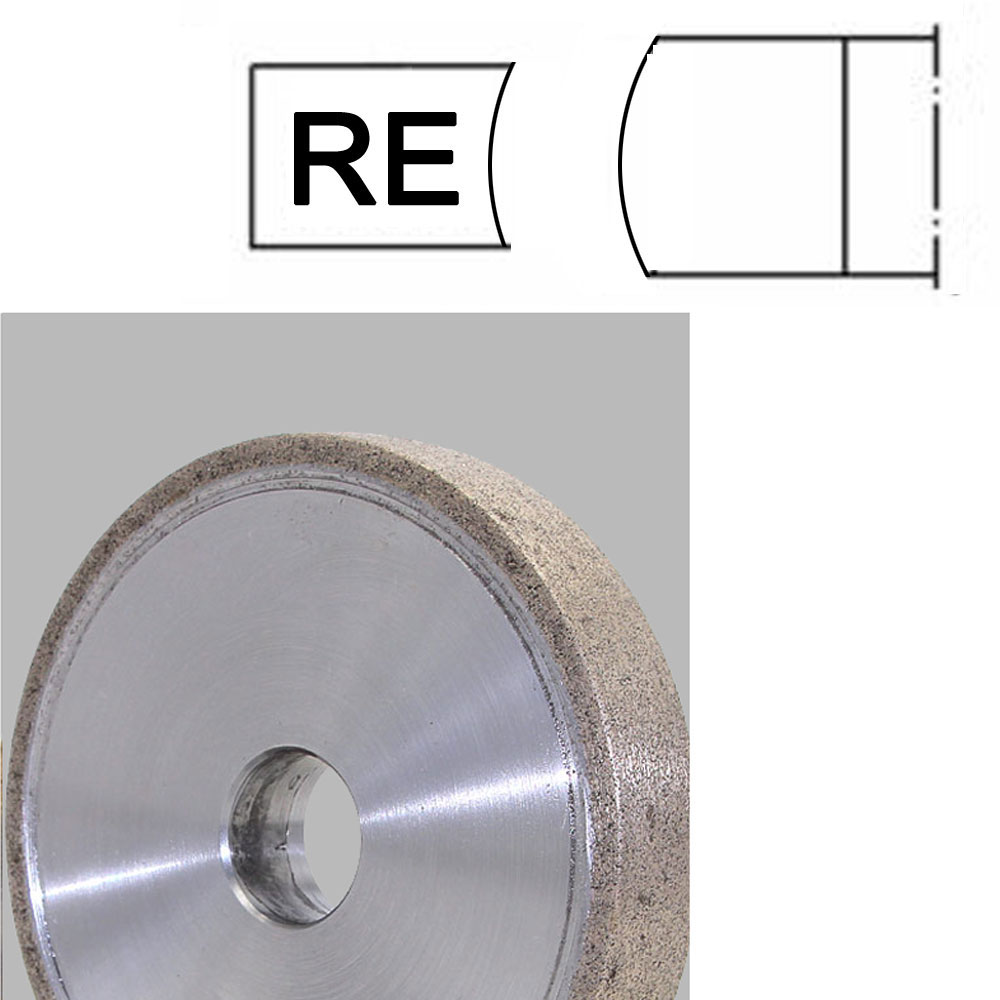

RE Type Convex Radius Edge Diamond Grinding Wheel

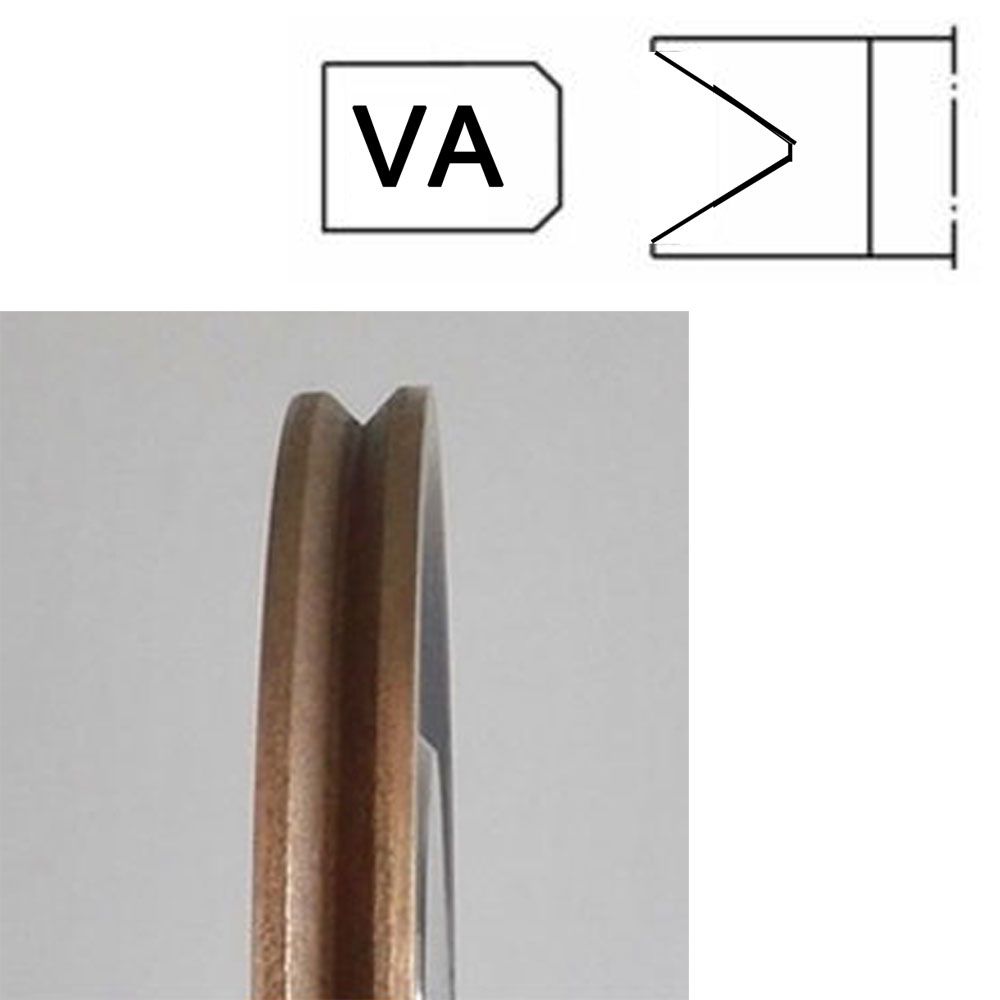

VA Type V Groove Edge Diamond Grinding Wheel
Diamond-Pencil-Grinding-Wheel-flat-V-angle-abrasive-wheel-For-3-12mm-glass-Shape-Edger-Machine.jpg_Q90.jpg_ (1)
Diamond-Pencil-Grinding-Wheel-flat-V-angle-abrasive-wheel-For-3-12mm-glass-Shape-Edger-Machine.jpg_Q90.jpg_ (1)
Diamond-Pencil-Grinding-Wheel-flat-V-angle-abrasive-wheel-For-3-12mm-glass-Shape-Edger-Machine.jpg_Q90.jpg_ (1)
Diamond-Pencil-Grinding-Wheel for glass edging
Click to enlarge
Diamond Pencil Grinding Wheel For Glass Shape Edging Machine (6)
Diamond Pencil Grinding Wheel For Glass Shape Edging Machine (2)
Diamond Pencil Grinding Wheel For Glass Shape Edging Machine (3)
FA Type Straight Edge Diamond Grinding Wheel
FE Type Flat Edge Diamond Grinding Wheel
PE Type Pencil Edge Diamond Grinding Wheel
RE Type Convex Radius Edge Diamond Grinding Wheel
VA Type V Groove Edge Diamond Grinding Wheel
Diamond-Pencil-Grinding-Wheel-flat-V-angle-abrasive-wheel-For-3-12mm-glass-Shape-Edger-Machine.jpg_Q90.jpg_ (1)
Diamond-Pencil-Grinding-Wheel-flat-V-angle-abrasive-wheel-For-3-12mm-glass-Shape-Edger-Machine.jpg_Q90.jpg_ (1)
Diamond-Pencil-Grinding-Wheel-flat-V-angle-abrasive-wheel-For-3-12mm-glass-Shape-Edger-Machine.jpg_Q90.jpg_ (1)
Diamond-Pencil-Grinding-Wheel for glass edging
Home Diamond Grinding Wheel Diamond Pencil Edge Grinding Wheel For Glass Shape Edging Machine
Electroplated diamond CBN Cutting Wheels
Electroplated cutting wheels Diamond CBN abrasive cut off wheel
Back to products
Cylinder Electroplated diamond mounted Point with round Radius Head L60mm/120mm
Cylinder Electroplated diamond mounted Point with round Radius Head L60mm/120mm

Diamond Pencil Edge Grinding Wheel For Glass Shape Edging Machine

Diamond pencil edge grinding wheel takes synthetic diamond as abrasive grain, with 45# steel as matrix, which with a round concave edge for glass edge grinding. Suit for shape edging machine.

Note:

Customized Specification production time 15 days around,

Contact us before placing an order or needing a sample.

Compare
Add to wishlist
SKU: aae6679eaff6 Categories: Glass industry, Diamond Grinding Wheel, Grinding Wheels, Metal bond grinding wheel Tag: Diamond|For Glass|For grinding|Metal bond
Share:
  • Description
  • Shipping & Delivery
Description

Diamond Pencil Edge Grinding Wheel

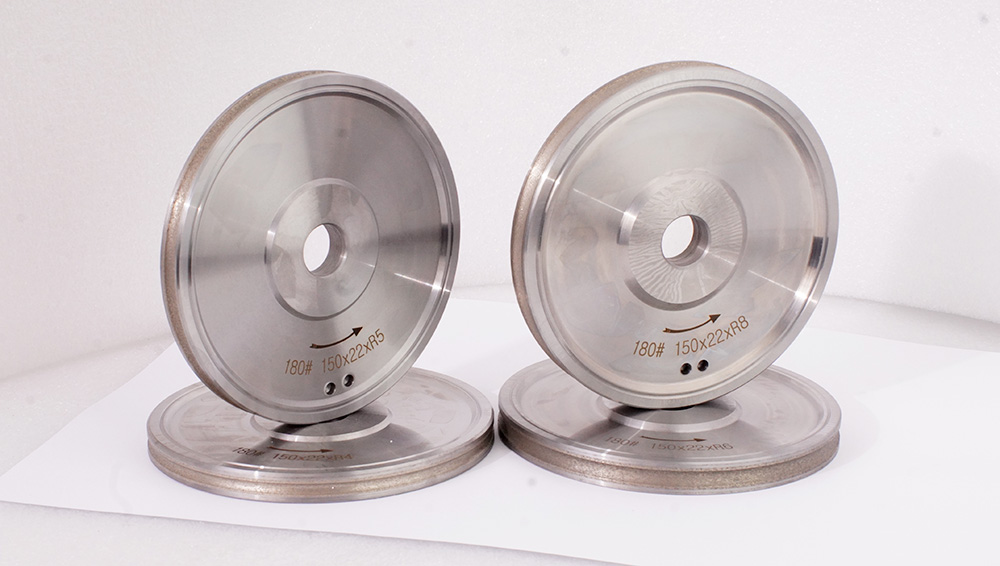

Diamond Pencil Edge Grinding Wheels R4 R6 R5 R8PE Type Pencil Edge Diamond Grinding Wheel

Diamond pencil edge grinding wheel takes synthetic diamond as abrasive grain, with 45# steel as matrix, which with a round concave edge for glass edge grinding. Suit for shape edging machine.

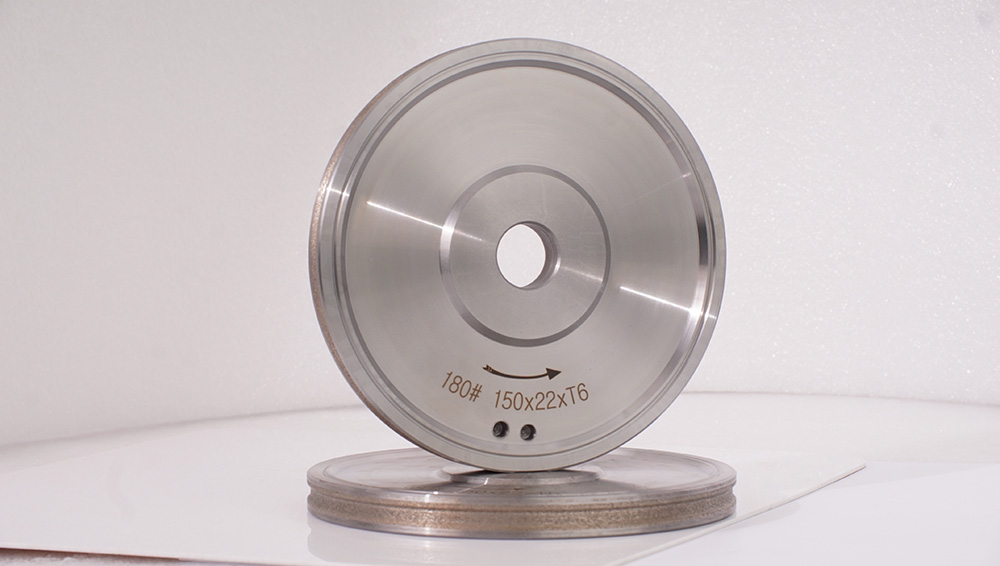

Trapezoidal Diamond Wheel for glass edgingFA Type Straight Edge Diamond Grinding Wheel
Another similar type is with a straight edge which is close to the diamond pencil edge grinding wheel is also very popular, standard diameter 4inch (100mm), 6inch (150mm) and bore 22mm is the most popular type.



FE Type Flat Edge Diamond Grinding Wheel  RE Type Convex Radius Edge Diamond Grinding Wheel VA Type V Groove Edge Diamond Grinding Wheel

Other types of edge are also available for customizing.

Need Customized abrasive tools whatsapp Mrbrianzhao

Specification:

Item Name Size Grit
Diamond Pencil Edge Grinding Wheel 150×22/25 3-4mm 120# 150# 180#
150×22/25 5-6mm 120# 150# 180#
150×22/25 8mm 120# 150# 180#
150×22/25 10mm 120# 150# 180#
150×22/25 12mm 120# 150# 180#
150×22/25 15mm 120# 150# 180#
175×22/25 3-4mm 120# 150# 180#
175×22/25 5-6mm 120# 150# 180#
200×22/25 3-4mm 120# 150# 180#

Technology:

Taking high-quality steel as the matrix, being formed through intermediate frequency hot pressing sintering.

Features:

  1. Working in cooling water, high precision, sharp grinding, low noise, no tremor, no broken edge, high wear-resistance, high efficiency, long service life.
  2. Applicable for fast grinding, rough deburring, and smooth shaping and finishing of stones, masonry materials.
  3. Characterized by high working efficiency and using easily.
  4. It attaches to handheld grinders and floor polishing machines.

More other customized grinding wheels are available, contact us.
