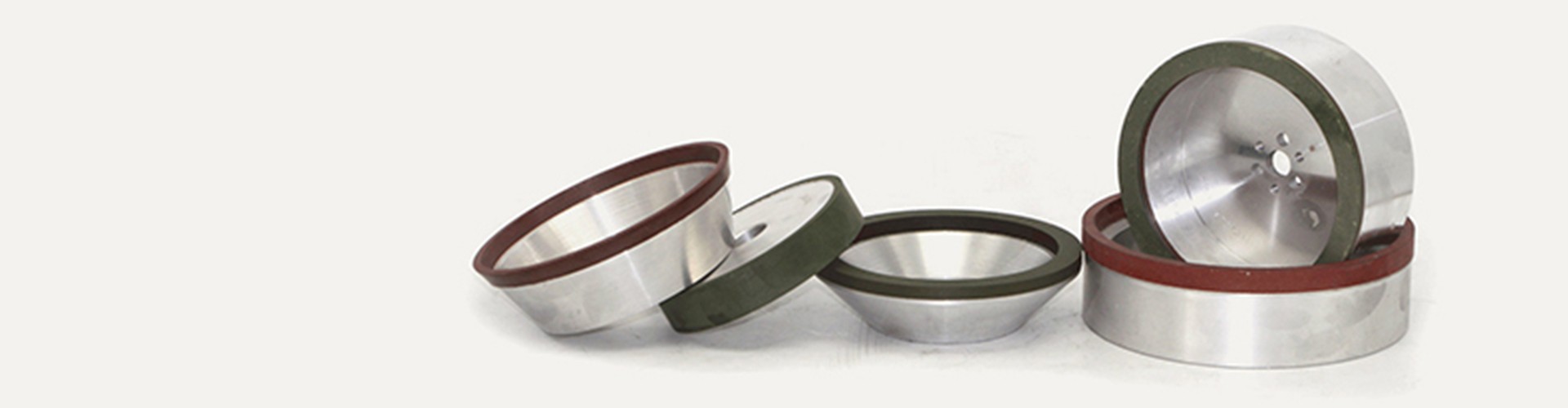

Resin Bond Diamond Grinding Wheels are mainly used for machining tungsten carbide, ceramic materials, magnetic materials, silicon materials, thermal spraying alloy materials and so on.
Resin Bond CBN Grinding Wheels are mainly used for machining high speed steel, cast iron and so on.
CBN Diamond Centerless Grinding Wheel
Centerless grinding wheels are used widely for smooth and optimal grinding by using centerless grinding machines. We provide these wheels in two types of abrasive i.e. diamond and CBN abrasives. Each has unique features and specific uses. You can choose abrasive according to the nature of your work. CBN wheels are used for centerless grinding of bearing rollers, injection nozzles, pump components, and other similar items. Diamond wheels are most commonly used for grinding hard alloy rods, tungsten carbide, and ceramics. A detailed guide about the controlled operation of these wheels also have been added.
Low-E Glass Edge Deletion Wheel
The Low-E glass edge deletion wheel is an ideal tool for de-coating Low-E glass. It's a type of wheel that features dry and wet grinding, high precision, no shaking, a good gloss of the glass surface, and no need for other solvent cleanings after coating removal.
Note:
Our production time for customized specifications is around 15 days. Contact us today for a sample product before placing your order. Price is negotiable depending on the quantity of your order.
Resin Bond Diamond Grinding Wheels
Resin bond diamond grinding wheels are perfect for grinding carbide, hard steel, hard alloy, all kinds of serrated teeth. They are great for sharpening edges, miller cutters and are suitable for the outer circular grinding and surface grinding of tungsten steel, alloy steel, and cemented carbide measuring tools. Besides, they can be used for grinding optical glass, high-alumina porcelain, agate gem, stone, semiconductor material, and so on.
Note:
Our production time for customized specifications is around 15 days. Contact us today for a sample product before placing your order. Price is negotiable depending on the quantity of your order.
Diamond CBN Resin Bond Cutting Wheels
Resin bond cutting wheel is a cutting tool categorized into two types which are the resin bond diamond cutting wheel and resin bond CBN cutting wheel. Cutting carbide, ceramics, exotic metals, and other rough and brittle materials are the specialty of resin bond diamond cutting wheel. While resin bond CBN cutting wheel is applied for hard steel cutting especially those above Rc 50.
Note:
No stock, Production time 15 days around, MOQ 10pcs, Contact us before placing an order.
1F1 Round Edge Resin Bond Diamond Grinding Wheel
Resin bond diamond grinding wheel is forturetools popular abrasive products which are mainly used for machining tungsten carbide cutting tools, optical glass, gem, semi-conductor materials, non-ferrous materials, ceramic, magnetic materials, silicon, glass, quartz, thermal spraying alloy and non-metallic material grinding.
Grinding Wheel For Carbide tools blade teeth Sharpening
These serious grinding wheels are specially used for sharpening all kinds of carbide saw blades, carbide tools, such as Vollmer, Abm, Rekord, Woodtronic, Akemat, Wilma.
For circle saw teeth sharpening, there are three parts that need to be grounded, face, top and sides, different part need different grinding wheels to process.
The most popular wheel type is 3A1,4A2, 4BT9 etc.
Resin bond CBN grinding wheel for HSS sharpening
Forturetools produce this type of Resin bond CBN grinding wheel for HSS sharpening, for high-speed steel cold saw hacksaw blade teeth, this grinding wheel choose high-quality raw cubic boron nitride abrasive sand grain and resin bond materials, which makes it has a very strength grinding and sharpening ability, the service life is much longer than common wheels.
Resin bond CBN surface grinding wheel
Resin bond CBN surface grinding wheel is mainly used for fine grinding of double-disc surface grinding of the inner and outer race surfaces of bearings, transmission gears, washers, tappet shims, compressor part, vane pump vanes, gearshift gears, gaskets, slots, water oil pressure pump blades, precision springs and so on. These are applicable to a wide range of materials, such as high-speed tool steel, die steel, bearing steel, carbon tool steel, spring steel, cast iron, sintered ferrous metal, etc. Our superior tech for this wide surface wheels is applied in CBN distribution, consistent bond qualify, and dimensional accuracy.
Resin bond CBN grinding wheel for gear hob cutter
This type of CBN grinding wheels are specially used for gear hob cutter grinding,
before grinding, we need to use Green silicon carbide grinding wheel dress it, to make sure it has good concentricity.
During grinding, if you find the CBN wheel you are using is a little bit hard, you should slow down the line speed from 40m/s to 30m/s.
The roughness and sharpness are the most important for the CBN wheels.
