Bolt-Connected Diamond Grinding Segment

Our Bolt-Connected Diamond Grinding Segments are high-performance abrasive tools designed for efficient grinding and polishing of hard surfaces like concrete, marble, granite, and terrazzo. Featuring a durable metal-bond diamond matrix and secure bolt-on design, these segments deliver longer lifespan, faster material removal, and stable performance. Perfect for floor preparation, coating removal, and surface restoration, they are compatible with most grinding machines and available in multiple bond formulations for different applications.

Compare
Add to wishlist
Category: Diamond tools
Share:
  • Description
  • Shipping & Delivery
Description

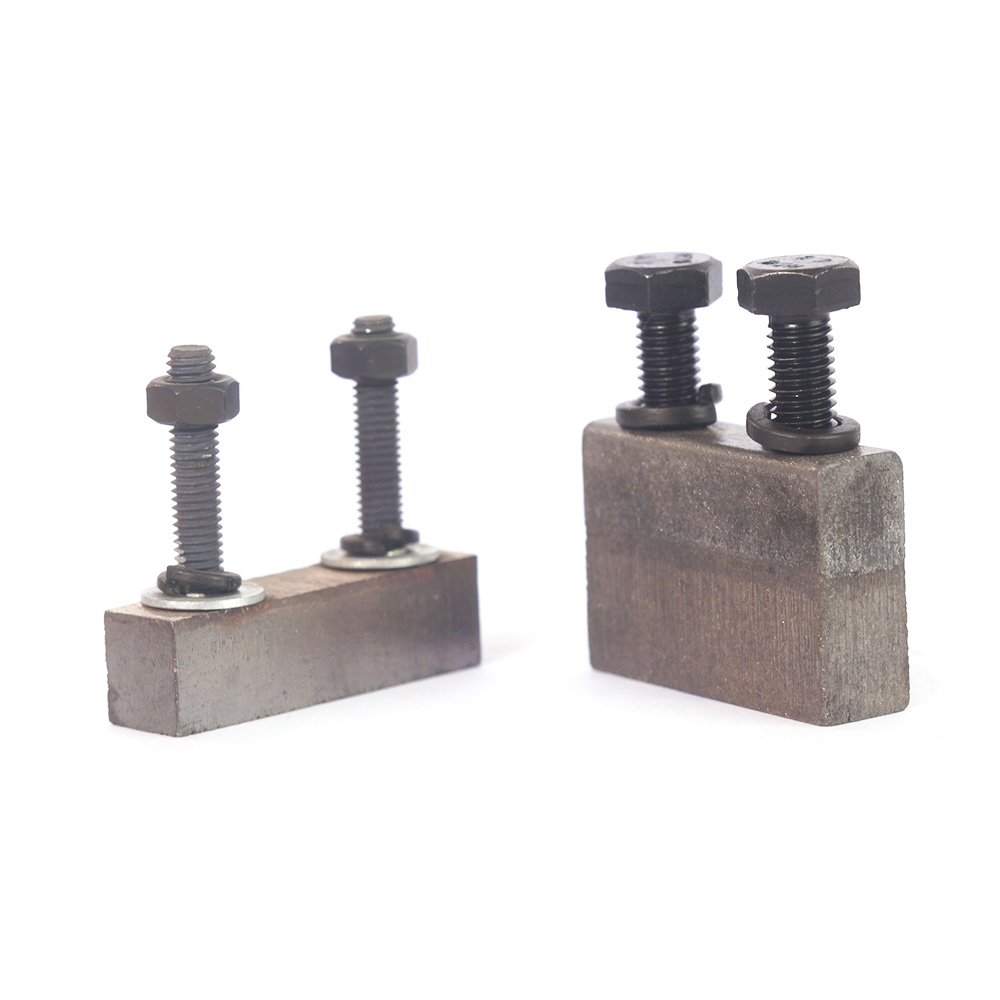

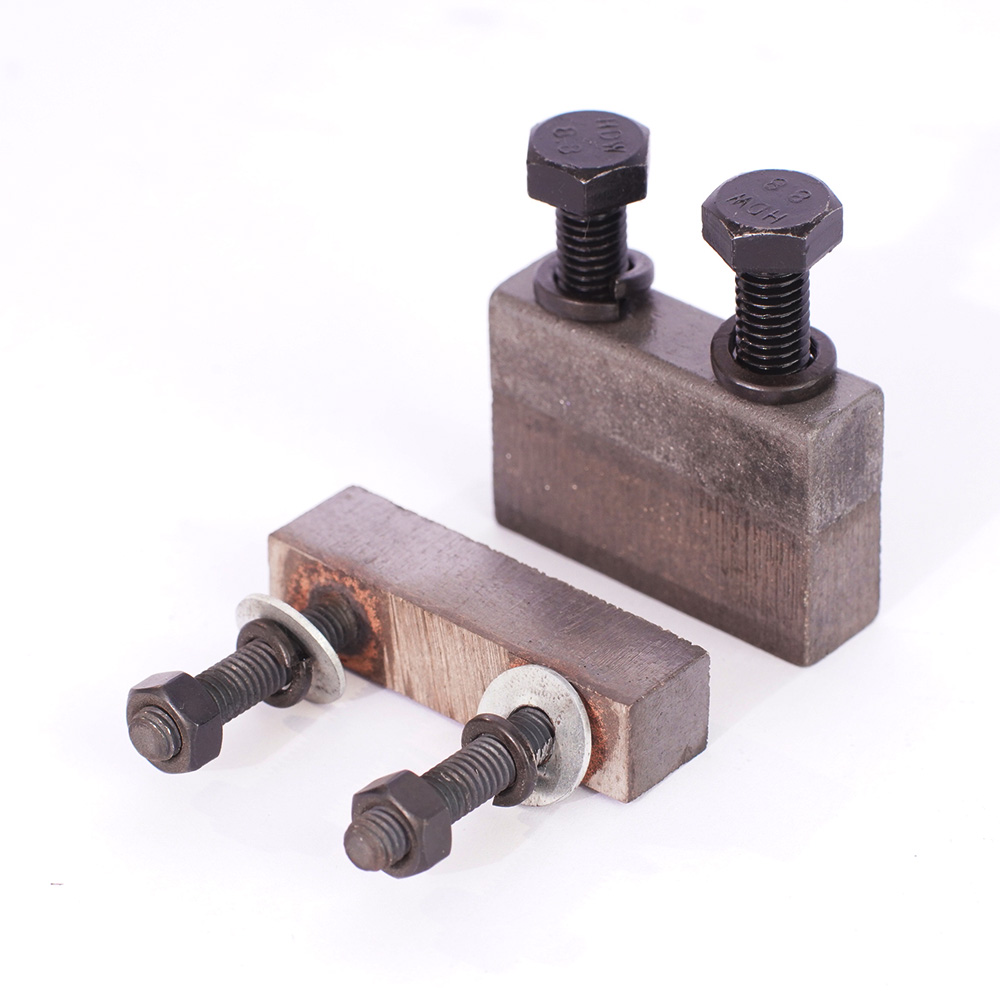

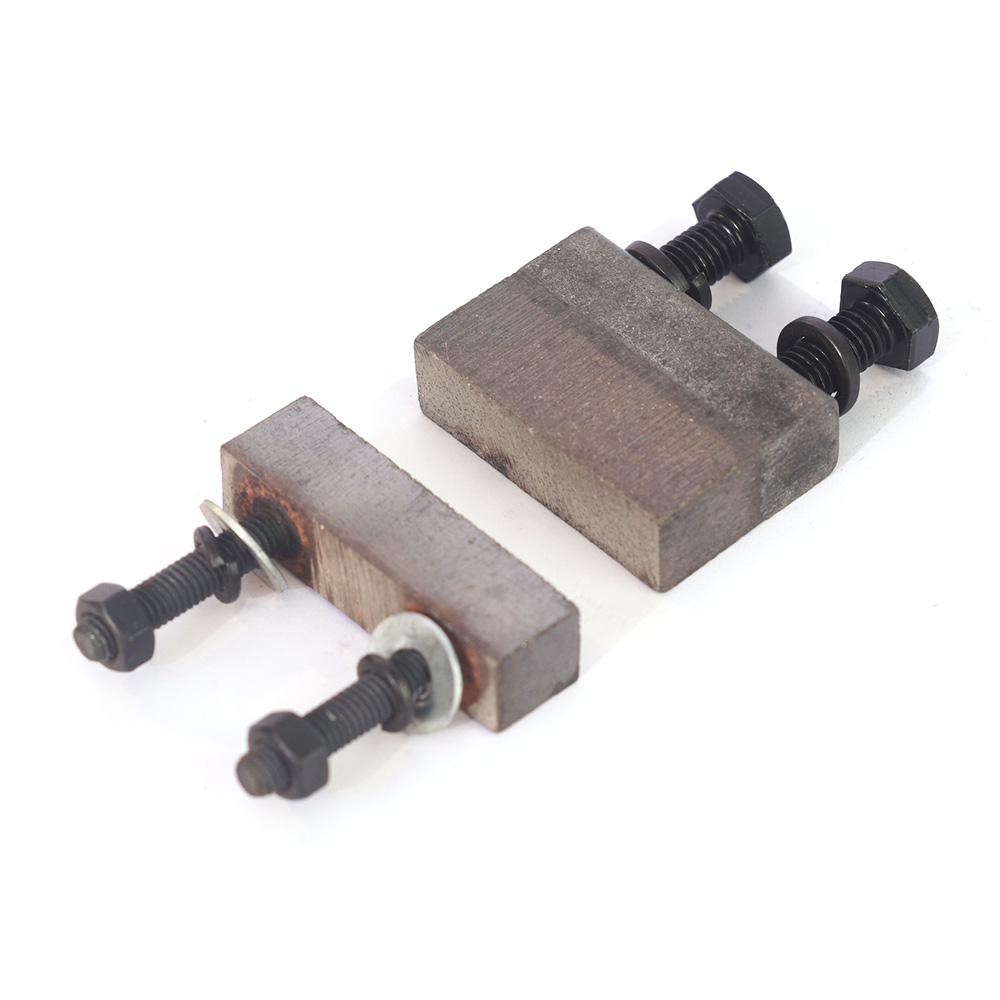

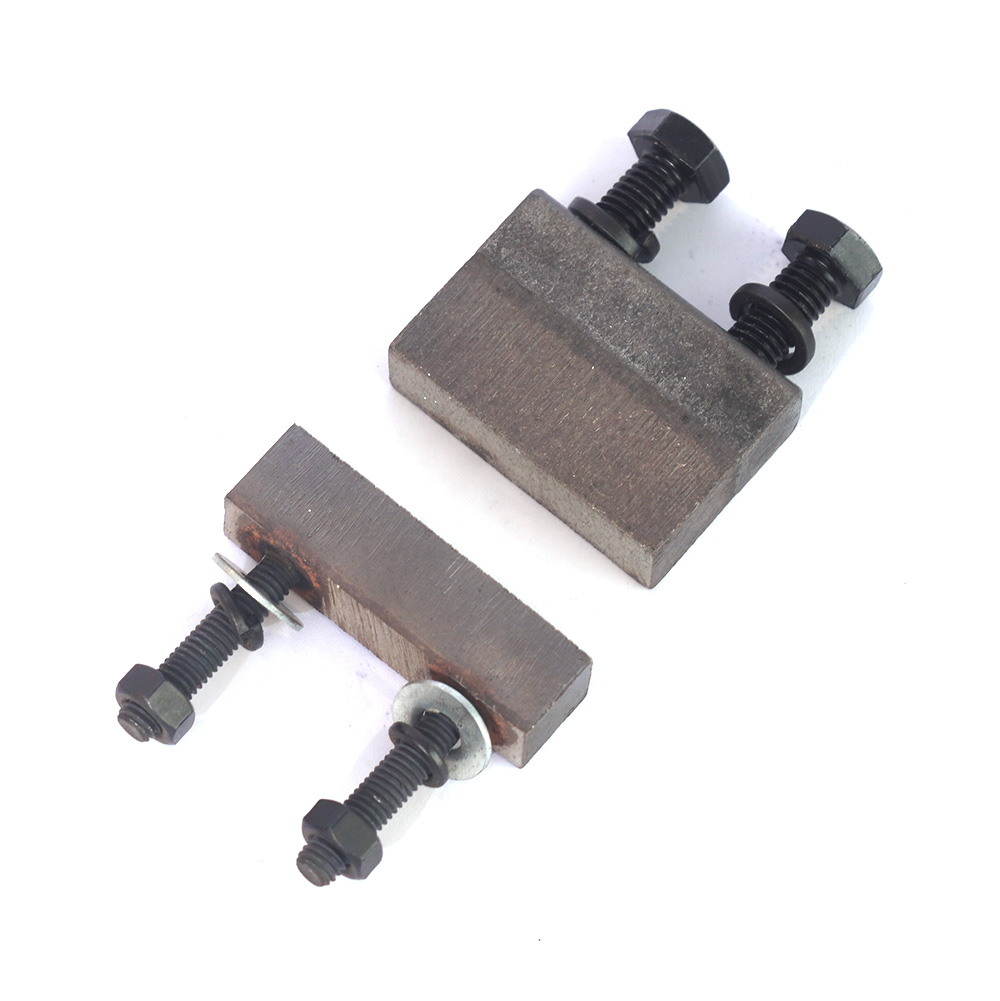

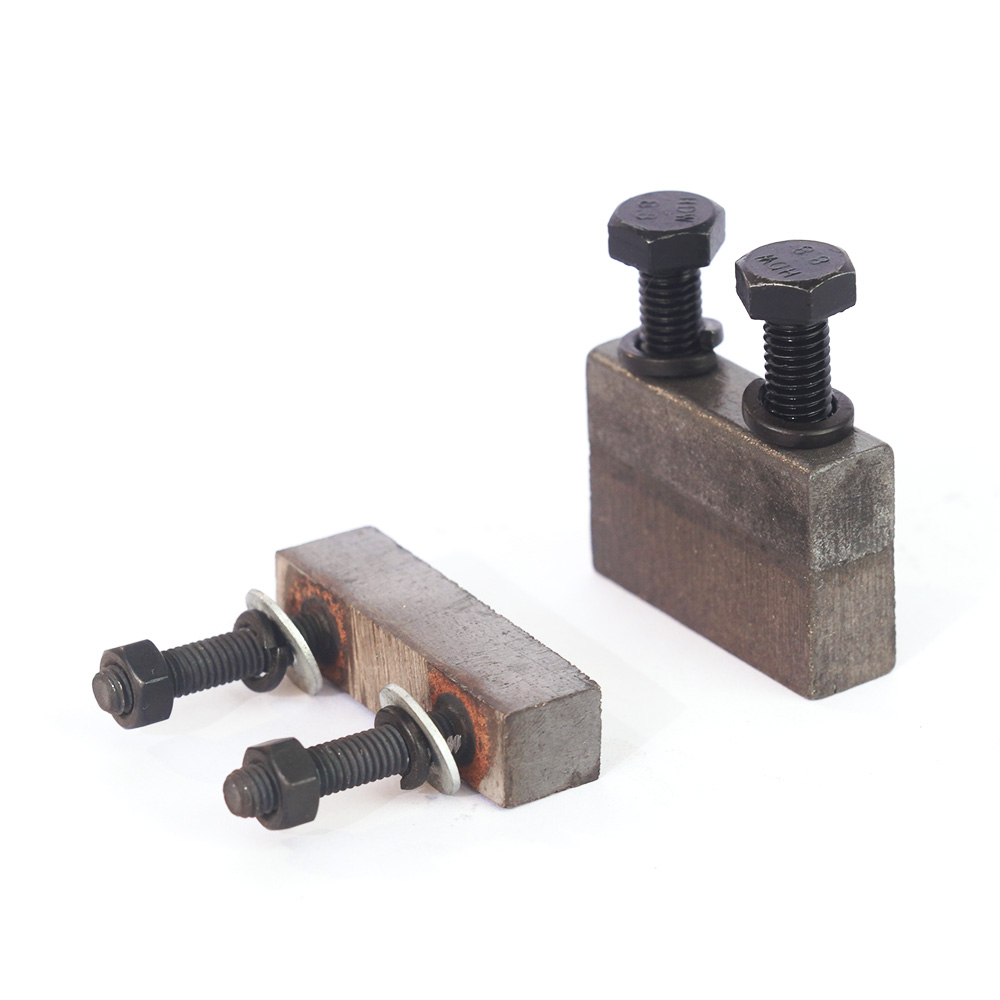

Bolt-Connected Diamond Grinding Segment

Our Bolt-Connected Diamond Grinding Segment is engineered for high-performance grinding and polishing of hard, non-metallic materials including marble, granite, concrete, terrazzo, and refractory surfaces. Manufactured with premium synthetic diamond abrasives and a specially formulated metal bond, these grinding segments deliver exceptional durability and consistent material removal.

Bolt-Connected Diamond Grinding Segment

The innovative bolt-on connection system allows multiple segments to be securely fastened together, creating a complete grinding surface for efficient and uniform results. This modular design enables easy replacement of individual segments, reducing downtime and maintenance costs.

Key Advantages:
  • High diamond concentration for aggressive cutting and extended lifespan
  • Thermally stable metal bond matrix prevents premature diamond loss
  • Precision-engineered segment shape for optimal contact and pressure distribution
  • Available in multiple bond formulations for different material applications

Technical Specifications

Attribute Details
Material Composition Synthetic diamond + metal bond matrix
Segment Shape Rectangular grinding block
Connection System 2-bolt (M8/M10 standard)
Grit Options Coarse (30/40), Medium (70/80), Fine (100/120+)
Bond Types Soft (resin), Medium (hybrid), Hard (metal)
Compatible Machines Most floor grinders with segment mounting plates
Segment Dimensions 40mm x 20mm x 10mm (standard size)
Weight Approx. 150g per segment

Applications

  • Concrete floor grinding and polishing
  • Terrazzo restoration and maintenance
  • Marble and granite surface preparation
  • Epoxy and coating removal
  • Industrial floor leveling
  • Aggregate exposure
  • Refractory material processing
  • Ceramic and porcelain surface treatment

Usage Guidelines

  1. Select the appropriate segment based on material hardness and desired finish
  2. Inspect mounting plate for wear or damage before installation
  3. Secure all bolts properly using recommended torque specifications
  4. Follow progressive grinding sequence from coarse to fine segments
  5. Maintain proper machine speed for optimal segment performance
  6. Clean segments regularly to prevent material buildup
  7. Rotate segments periodically to ensure even wear
Performance Tips:
  • For hard concrete, use segments with softer bonds to prevent glazing
  • On soft materials, harder bonds provide longer segment life
  • Keep grinding surface clean for maximum diamond exposure
  • Use water when permitted to reduce dust and extend segment life

Key Features

✔
Premium synthetic diamond abrasives for superior cutting
✔
High-temperature sintering for maximum diamond retention
✔
Secure bolt-on connection prevents segment loss
✔
Multiple bond formulations available
✔
Compatible with most floor grinding machines
✔
30% longer lifespan than conventional segments

Available Options

  • Standard Metal Bond
  • Hybrid Bond (Medium Hardness)
  • Resin Bond (Soft)
  • Turbo Segment (Fast Cutting)
  • Premium Segment (High Diamond Concentration)
